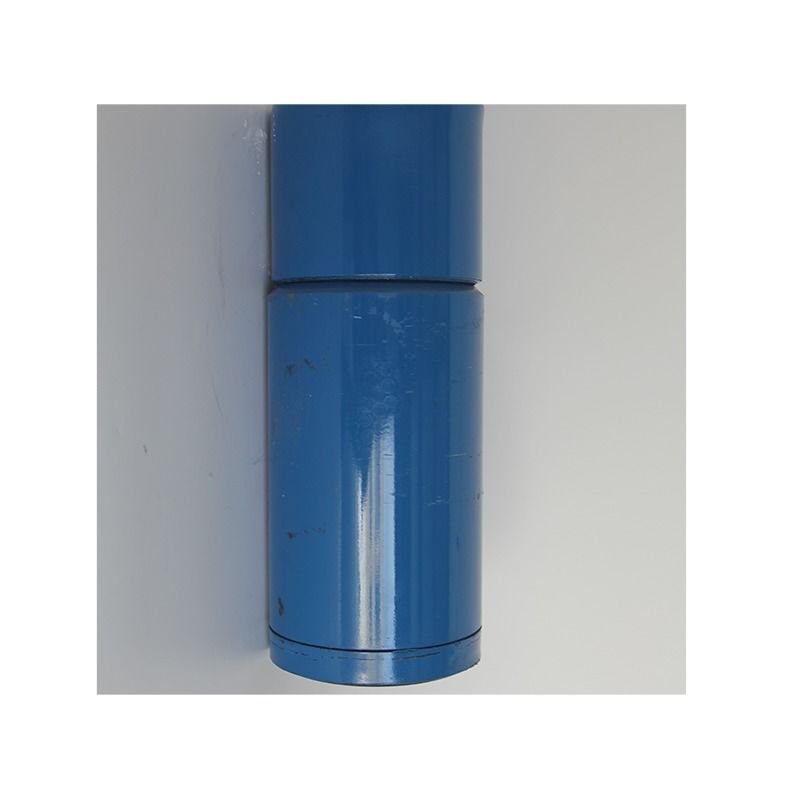

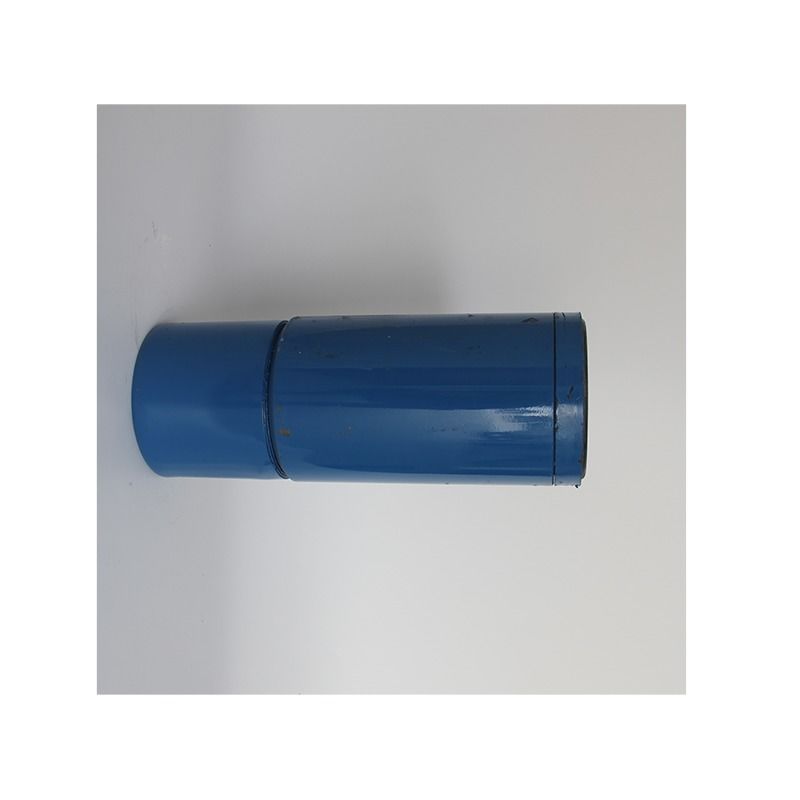

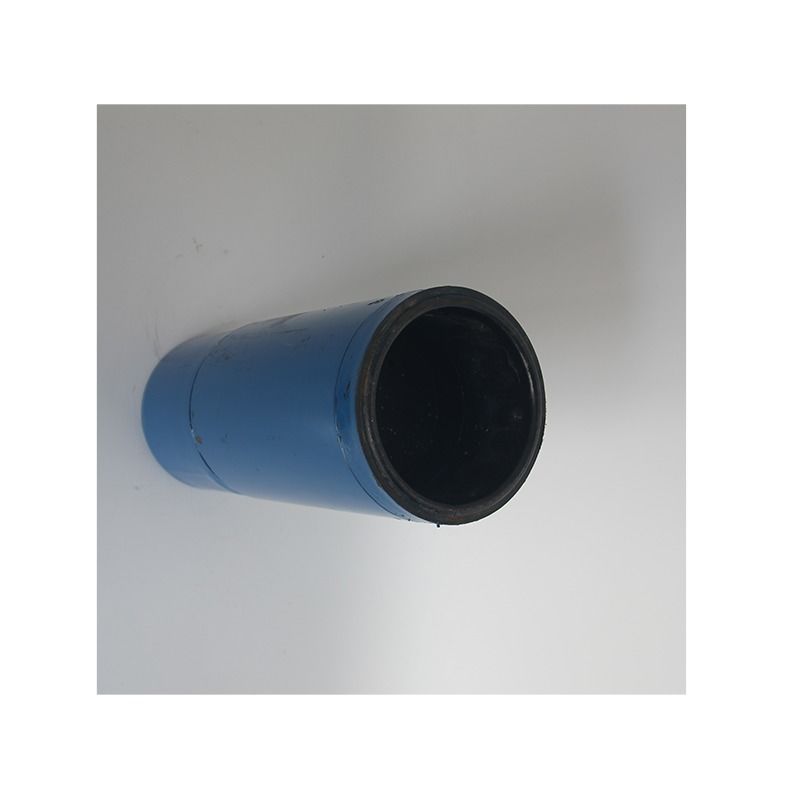

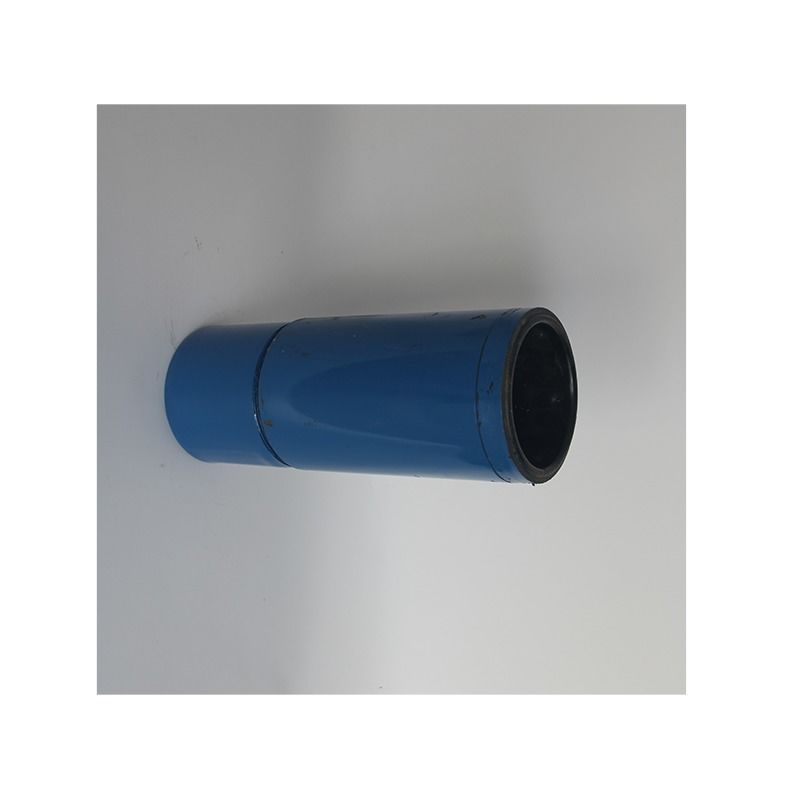

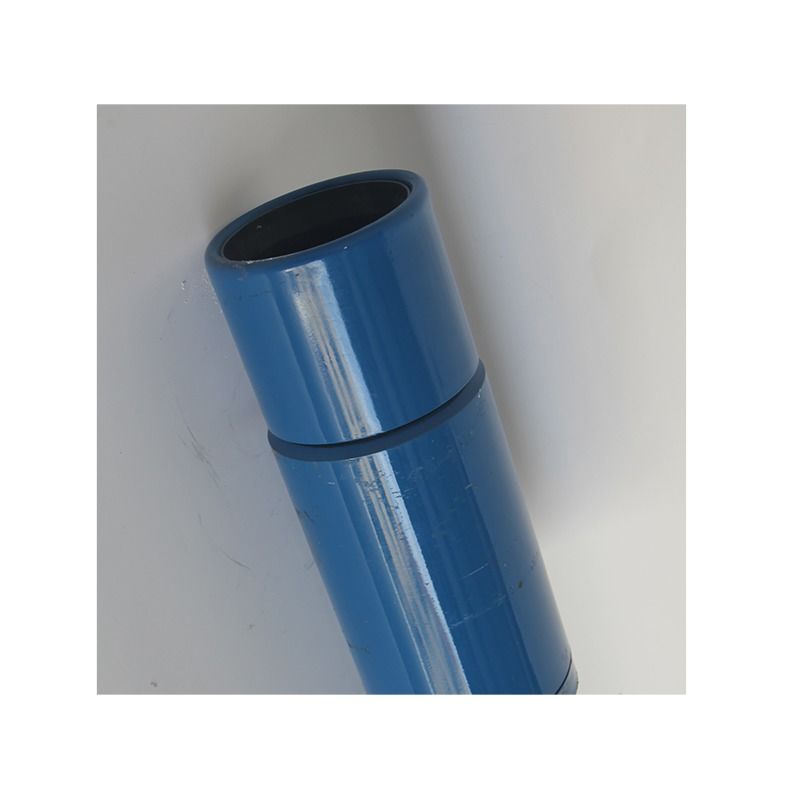

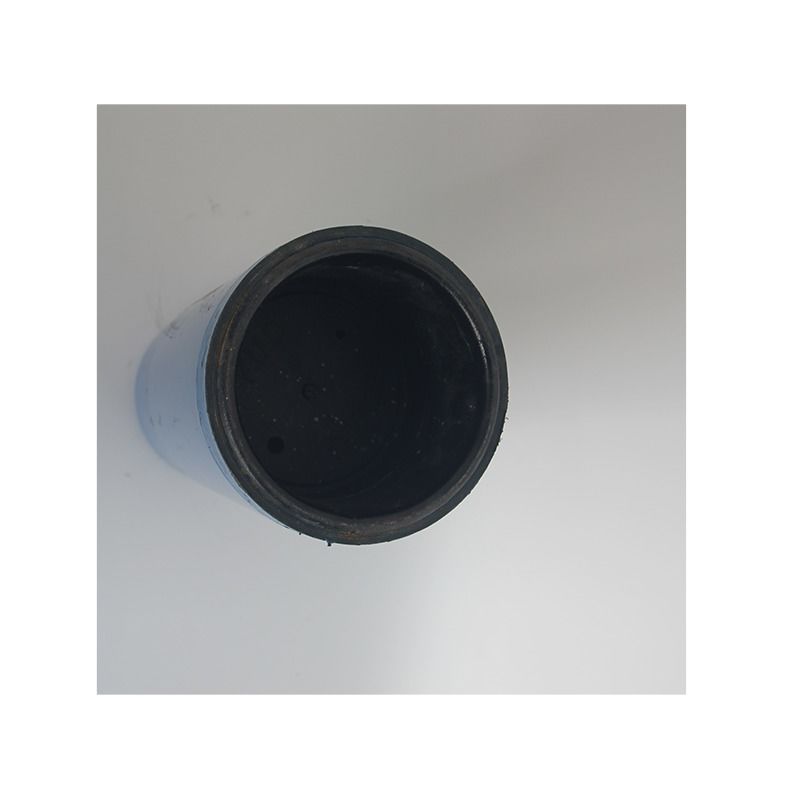

100KG Cementing Float Equipment for Well Drilling with 1 Year Warranty

Mindestbestellmenge:	5

Detailinformationen

Produkt-Beschreibung

Detailinformationen

Herkunftsort:

China

Gewicht:

100 kg

Kernkomponenten:

Ventil

Ventiltyp:

Einfachventil und Doppelventil

Maschinenart:

Bohrwerkzeug

Verarbeitungstyp:

Schmieden

Schwimmerkragengröße:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Float Collar Bohrung OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Float Collar Bohrung ID:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Float Collar Min Bohrung:

2 ", 2 3/8"

Float -Kragen -Fadenstyp:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Schwimmerkragendruck:

4351, 3626 lb (in2)

Schwimmschuhgröße:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Schwimmerschuhbohrung OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Schwimmschuhbohrung ID:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Float Shoe Min Bohrung:

2 ", 2 3/8"

Hervorheben:

100KG cementing float equipment

well drilling float equipment

cementing float equipment with warranty

Produkt-Beschreibung

Superior Performance Premium Oil Field Equipment Cementing Float Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement. Specifications Name Size (in) Bore O.D. (in)
